High Temperature Graphite Furnace

Request Product Brochure

The High-temperature Graphite (HTG) Furnace is the most economical vacuum furnace system for processes that require high temperatures up to and above 2500°C that are not affected by a carbon containing environment, for materials please see our APF product line. High-temperature graphite furnace hot zones are made entirely from high purity graphite, and due to graphite’s excellent thermo-mechanical properties allow rapid heating and cooling to reduce overall process cycles. In most applications the hot zone has a long operating life, but for aggressive materials hot zone replacement in the field is a fast and easy process.

Graphite Vacuum Furnace Orientations

High temperature graphite vacuum furnace systems are available in both vertical and horizontal orientations with round or square hot zones. Common configurations are either a radial heater for round hot zones and 2 or 4 sided panel heaters for square hot zones. More demanding applications in terms of temperature uniformity may require the addition of top and bottom trim heaters. HTG systems are designed to the highest quality with safety and long service lifetime in mind.

Standard Design Features

  • Round or Square Hot Zone
  • All Stainless Steel Chambers
  • Stainless Steel Gas Plumbing
  • Fully Automatic Operation
  • Automatic Data Logging
  • Operation to 2,500°C
  • Rapid Vacuum Pump-down
  • PLC with Touchscreen HMI
  • Independent Overtemperature Control
  • Fully Monitored Water Systems

High Temperature Graphite Product Examples

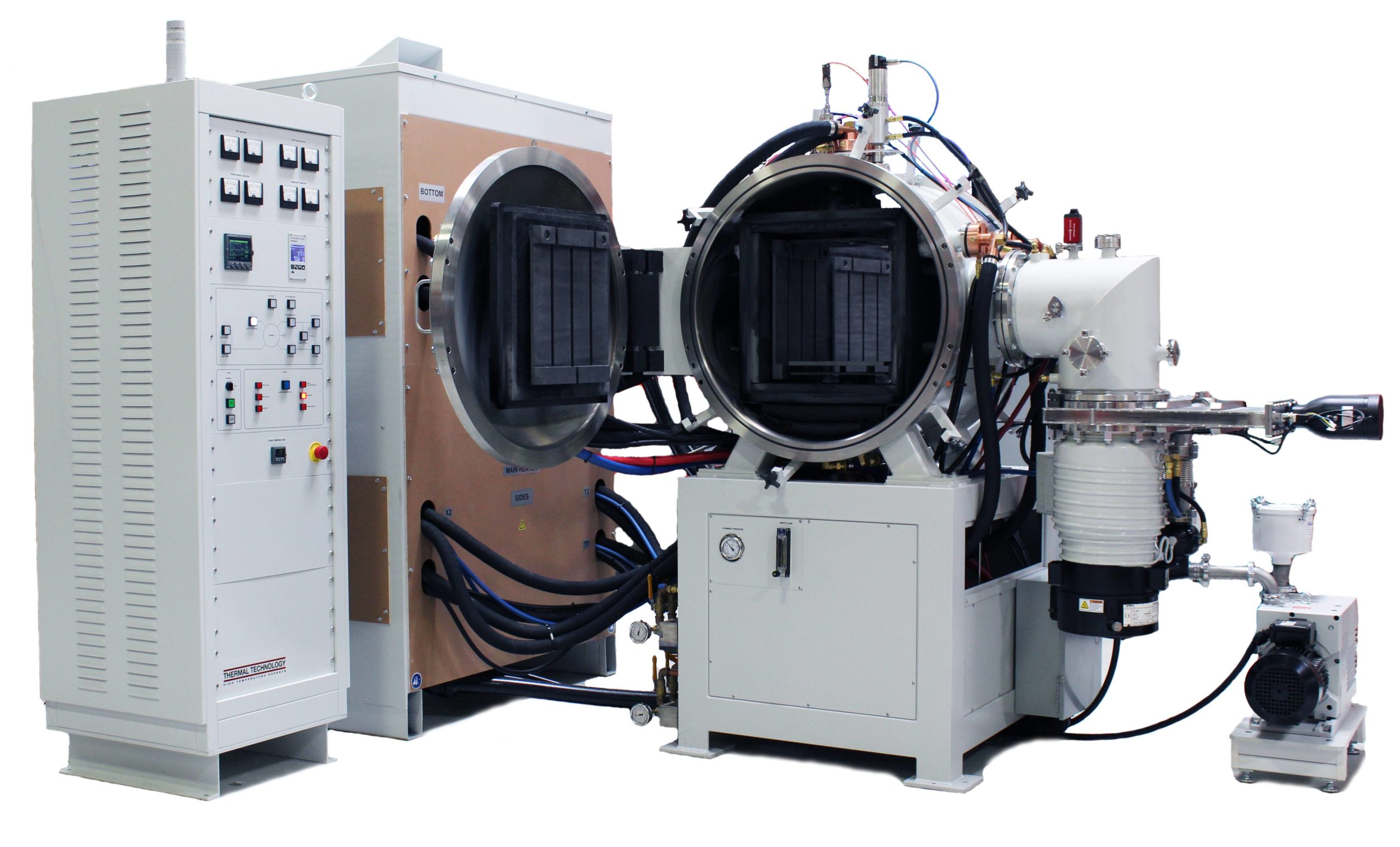

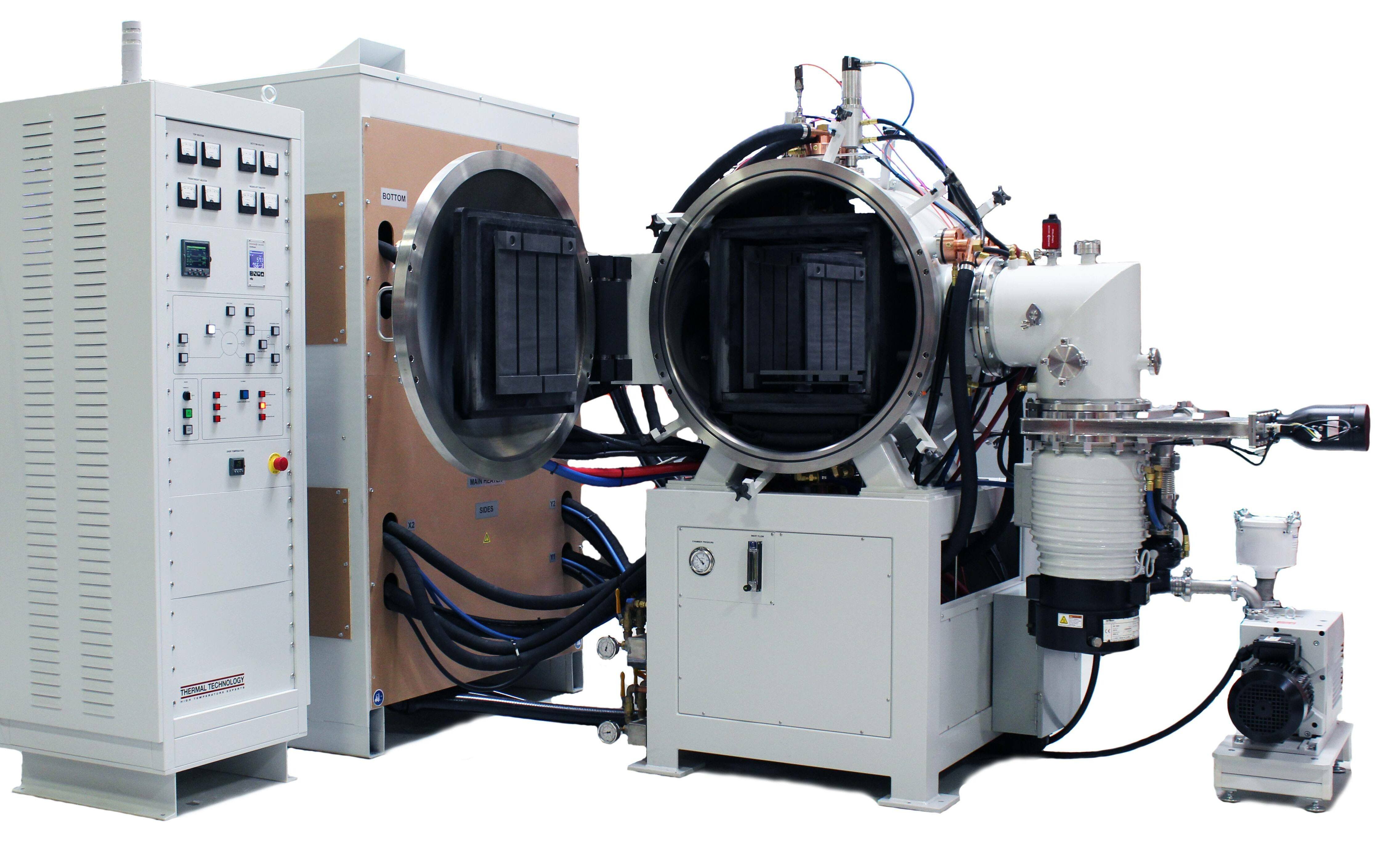

high temperature graphite furnace

High Vacuum

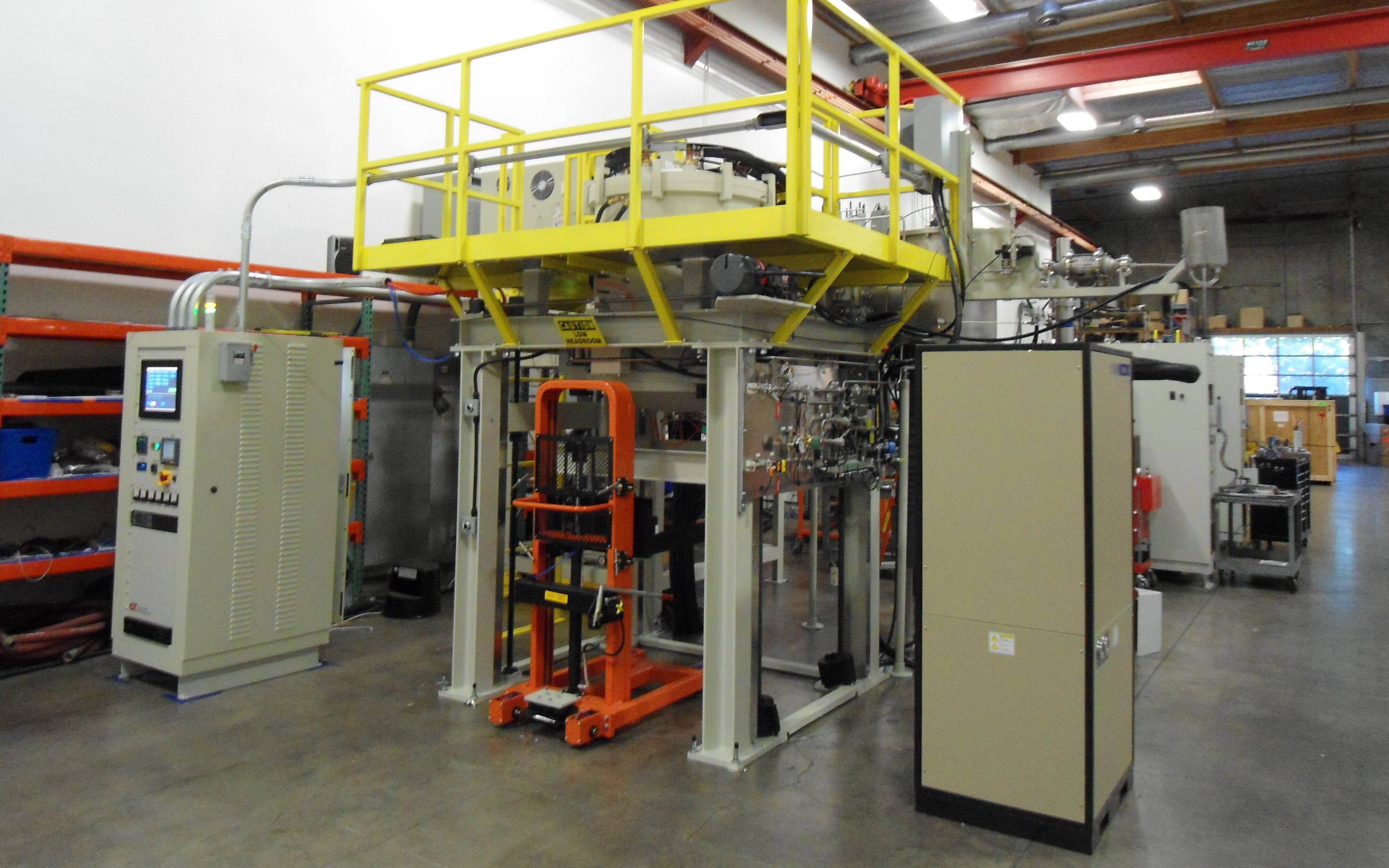

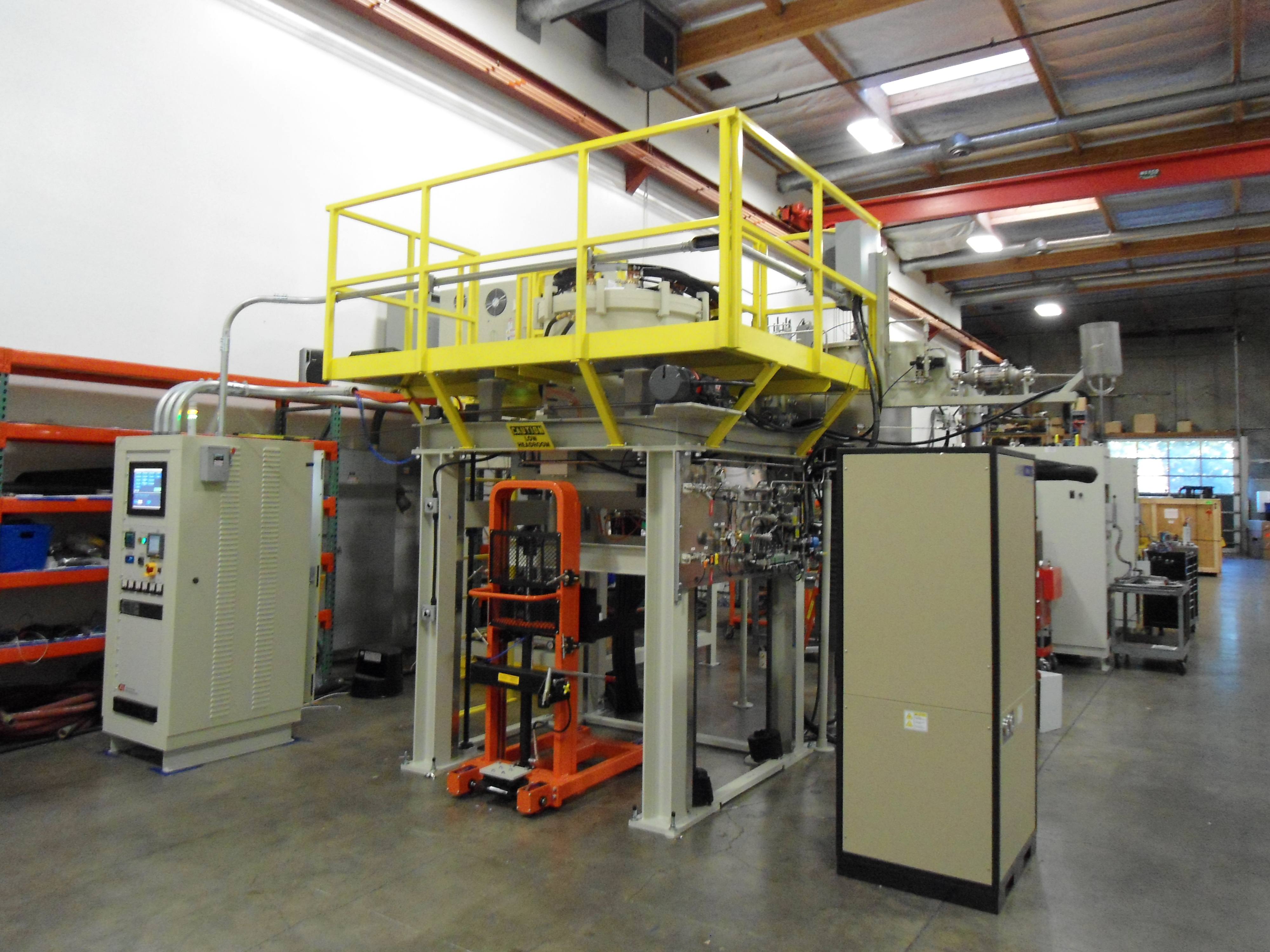

Bottom Loading

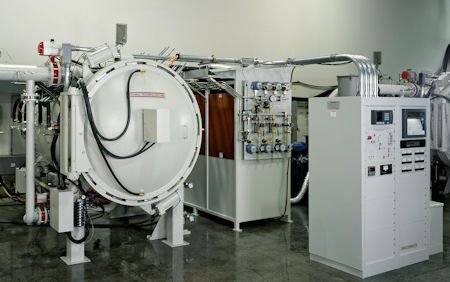

High temperature graphite production furnace

Combustible Gas

Common Sizes and Configurations

Loading TypeWorking Zone mm (Inch)
FrontW 300 x H 300 x D 300 (12x12x12)
FrontW 300 x H 300 x D 600 (12x12x24)
FrontW 400 x H 400 x D 760 (16x16x30)
FrontW 600 x H 600 x D 600 (24x24x24)
FrontW 600 x H 600 x D 900 (24x24x36)
FrontW 450 x H 600 x D 1500 (18x24x60)
FrontW 900 x H 900 x D 900 (36x36x36)
FrontW 1600 x H 1600 x D 1600 (65x65x65)

*Larger models as well as bottom loading versions of similar sizes also available.
